Ana sayfa /Ürünler/Titreşim Test Cihazı/100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty

100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty

1
MOQ
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
sinüs kuvveti: 10000n
Titreşim dalgası: sinüs, rastgele, şok
Titreşim Yönleri: Üç Yönlendirme Ücretsiz Titreşim
Hızlanma sensörü: 1 PC
Giriş kanalı: 1 kanal
Frekans aralığı: 3-3000Hz
Nominal Hızlanma: 1000m/s2
Nominal Hız: 1.8m/s
Nominal yer değiştirme: 51mm PP
Maksimum yükleme: 270kg
hareketli bobin ağırlığı: 14kg
Hareketli bobin boyutu: Φ240mm
Dinamik daire: İyi tasarlanmış iskelet
manyetik devre: İki manyetik devre
Soğutma sistemi: Yeni kanal tasarımı
Vurgulamak:

100g Acceleration Vibration Testing Machine

,

10000N Sine Force Vibration Test Equipment

,

1 Year Warranty Electrodynamic Vibration Shaker
Temel bilgiler
Menşe yeri: Guangdong, Çin
Marka adı: ASLI
Sertifika: CE,Third party calibration qualification report
Model numarası: ES-10
Ödeme & teslimat koşulları
Ürün Açıklaması
Vibration Test Machine with 100g Acceleration
Product Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 0
Technical Parameters of Horizontal Expander
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 1
Key Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation designed for convenient mobile installation
  • Advanced moving system technology ensures high reliability of dynamic circle
  • Innovative duct design enhances cooling efficiency
  • High static stiffness and low dynamic stiffness of bearing balloon improves vibration table capacity and low-frequency performance
Product Images

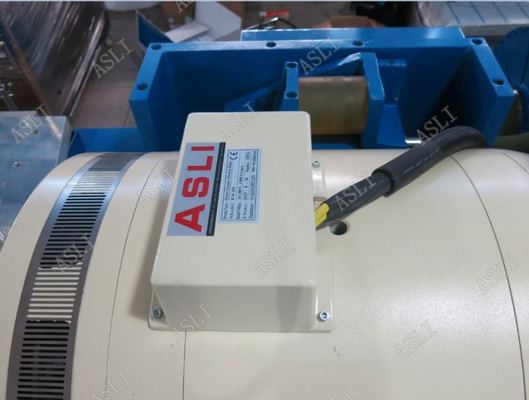

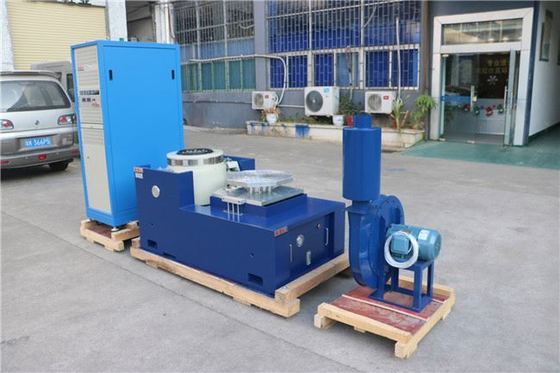

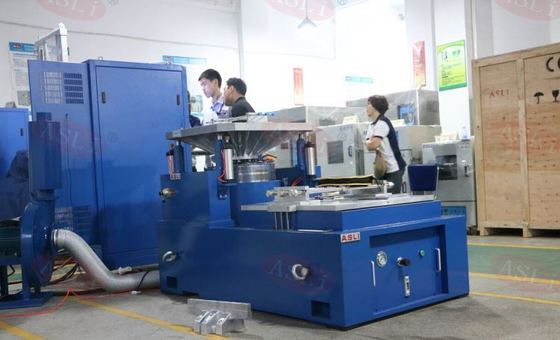

100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 2
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 3
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 4
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 5
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 6
100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty 7
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about our vibration test machine with 100g acceleration, please don't hesitate to send your inquiry.
